How to Install Basement Windows

Basement windows are usually out of sight and out of mind, but if your old steel-framed, cast-in-place units are starting to show signs of corrosion, or the single-pane glass and lack of gasketing means leaks and drafts, then it’s time to tackle a replacement. In this video, host Justin Fink visits Fine Homebuilding veteran Mike Guertin to see his method for removing an old basement window and replacing it with a modern, energy-efficient vinyl window.

If you want a more detailed Instructions process specific to our windows, here’s how to install a Basement Hopper Window: PDF – How to Install

Step 1 – Remove old window and frame

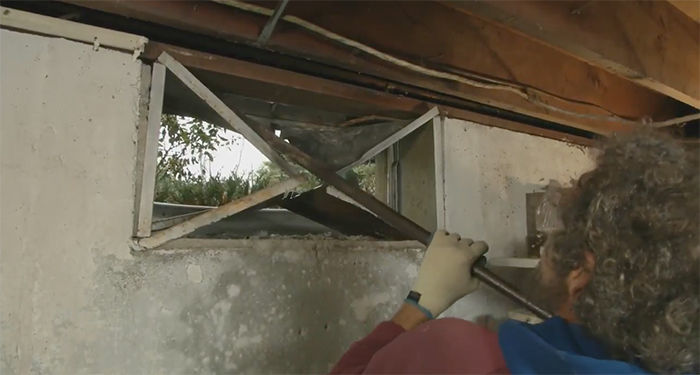

Start by removing the old window sash from the metal frame. Then, using an angle grinder with a metal cutting wheel, cut through the bottom of the frame, going all the way from the inside to the outside edge. Cut completely through the sash stop and the concrete within.

After applying sealant to the inside face of the stop pieces, slide the window into the opening. If it is fitting too snugly between bucks, don’t force it. A block plane can be used to shave the side channels of the vinyl frame to give the window a bit more wiggle room

Once in place, screw through the sides of the window and into the side buck pieces. Choose screws that are long enough to bit into the wood, but not so long that they’ll bottom out on the concrete beyond.

The last step is to add a bead of sealant around all four edges of the interior-side of the window, and another bead across the top and two
sides of the exterior. Never seal along the outside of the window sill, which should be left open for drainage.

Step 2 – Prep the opening for the new window

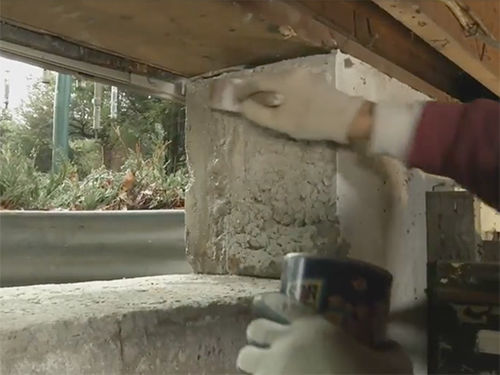

Next, chisel away the remaining concrete left by the hollow sash stops on the bottom and sides of the opening. A pneumatic chisel makes quick work of cleaning up the opening, but a hammer and masonry chisel works fine, too.

After sweeping the concrete clean, coat the surfaces of the opening generously with siloxane masonry sealer until the concrete is saturated and won’t absorb any more sealant (several brands are available). Wipe up excess and let the surface dry before moving on to the sill.

Mike likes to set the new windows atop a 2×8 pressure-treated sill, which he rips with a 5- to 10-degree slope on one edge to help water drain away. Cut correctly, the sill should snuggly and require a few taps of a hammer to seat it in place in the opening. It should project
between 1/4 in. and 1/2 in. beyond the exterior face of the wall. Once you’ve got it located, mark its position. If the height of your opening doesn’t permit the use of a full-thickness 2x sill, you can re-saw or plane the pressure-treated stock to be thinner.

The sill will be secured in the opening with a combination of masonry screws and adhesive sealant. After boring pilot holes through the wood, switch to a masonry bit to bore holes into the concrete. Then, remove the sill. Apply adhesive sealant across the bottom of the opening, including a thick bead on each of the two ends. Then fasten the sill in place.

Step 3 – Making the bucks

Next, dry-fit the window in the center of the opening and measure the gap on both sides. If the concrete opening is out of square by more than 1/4 in., the buck pieces may need to be tapered. In some cases, like on this installation, there won’t be room or need for a buck above the window. That’s okay. The window can be fastened to the mud sill.

Cut the side buck pieces to match the gap between window and concrete, but subtract about 1/16 in. to account for the sealant that you’ll apply. The bucks should fit snugly, and Mike fastens them using trim head screws driven at a steep angle into the mud sill above and the window sill below.

Step 4 – Stops and sealing

Next come stops for the front edge of the window to seal against, which Mike cuts from 5/4 cedar. Which he then rounds over with a trim router for a cleaner look. These stops are cut to length and fastened with screws to the side bucks and mud sill.

After applying sealant to the inside face of the stop pieces, slide the window into the opening. If it is fitting too snugly between bucks, don’t force it. A block plane can be used to shave the side channels of the vinyl frame to give the window a bit more wiggle room.

Once in place, screw through the sides of the window and into the side buck pieces. Choose screws that are long enough to bit into the wood, but not so long that they’ll bottom out on the concrete beyond.

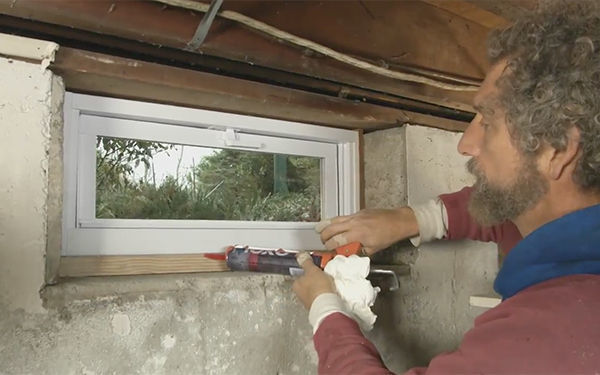

The last step is to add a bead of sealant around all four edges of the interior-side of the window, and another bead across the top and two sides of the exterior. Never seal along the outside of the window sill, which should be left open for drainage.

Custom Basement Windows

Benefits of Replacing Basement Windows:

Enhance your basement with the right windows designed for living space.
Modern vinyl windows are airtight, comfortable to operate, and low-maintenance.
Easy and affordable replacement for old, corroded, poured-in-place basement windows.

Types of Existing Basement Windows:

Houses built in the 1950s and later have metal basement windows of various dimensions.
Metal windows were set into temporary wooden frames and often developed rust due to exposure to concrete.
Common replacement method involves installing wood bucks for adjustable and precise fitting.

Replacement Steps:

Remove existing window and prepare the opening.
Measure and fit the new window into the opening.
Affix and seal the new window in place.

If your home has older wooden windows:

Wooden windows were hinged at the top and can be easily replaced following similar steps.

Premium Quality

Our windows offer durability and energy efficiency.

How to Install Basement Windows

Step 1 – Remove old window and frame

Start by removing the old window sash from the metal frame. Then, using an angle grinder with a metal cutting wheel, cut through the bottom of the frame, going all the way from the inside to the outside edge. Cut completely through the sash stop and the concrete within.

After applying sealant to the inside face of the stop pieces, slide the window into the opening. If it is fitting too snugly between bucks, don’t force it. A block plane can be used to shave the side channels of the vinyl frame to give the window a bit more wiggle room

Once in place, screw through the sides of the window and into the side buck pieces. Choose screws that are long enough to bit into the wood, but not so long that they’ll bottom out on the concrete beyond.

The last step is to add a bead of sealant around all four edges of the interior-side of the window, and another bead across the top and two sides of the exterior. Never seal along the outside of the window sill, which should be left open for drainage.

Step 2 – Prep the opening for the new window

Next, chisel away the remaining concrete left by the hollow sash stops on the bottom and sides of the opening. A pneumatic chisel makes quick work of cleaning up the opening, but a hammer and masonry chisel works fine, too.

After sweeping the concrete clean, coat the surfaces of the opening generously with siloxane masonry sealer until the concrete is saturated and won’t absorb any more sealant (several brands are available). Wipe up excess and let the surface dry before moving on to the sill.

Step 3 – Making the bucks

Cut the side buck pieces to match the gap between window and concrete, but subtract about 1/16 in. to account for the sealant that you’ll apply. The bucks should fit snugly, and Mike fastens them using trim head screws driven at a steep angle into the mud sill above and the window sill below.

Step 4 – Stops and sealing

Next come stops for the front edge of the window to seal against, which Mike cuts from 5/4 cedar. Which he then rounds over with a trim router for a cleaner look. These stops are cut to length and fastened with screws to the side bucks and mud sill.

After applying sealant to the inside face of the stop pieces, slide the window into the opening. If it is fitting too snugly between bucks, don’t force it. A block plane can be used to shave the side channels of the vinyl frame to give the window a bit more wiggle room.

Once in place, screw through the sides of the window and into the side buck pieces. Choose screws that are long enough to bit into the wood, but not so long that they’ll bottom out on the concrete beyond.

The last step is to add a bead of sealant around all four edges of the interior-side of the window, and another bead across the top and two sides of the exterior. Never seal along the outside of the window sill, which should be left open for drainage.
